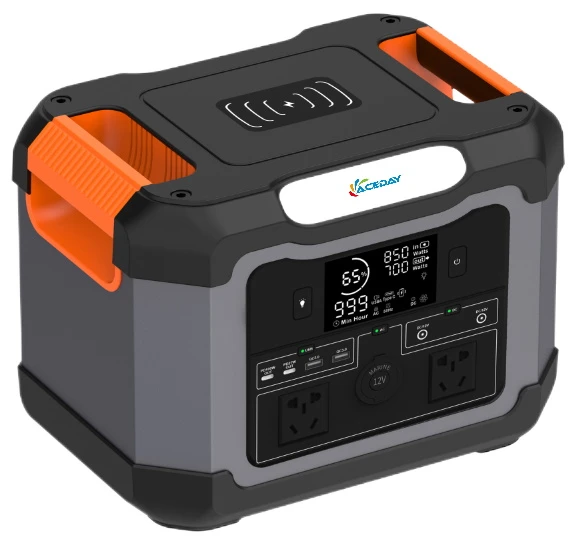

1200w Portable Power Station

1200w Portable Power Station Product Introduction



The ADS1200 Portable Power Station is the perfect solution for those seeking a reliable and powerful power source on the go. With its 1200W rated power and 2400W peak, this device packs a punch that can handle all your power needs whether you’re camping, RVing, or in an emergency situation. This power station boasts an impressive capacity of 1008Wh/315000mAh, guaranteeing hours of uninterrupted power supply for all your essential gadgets and appliances. Furthermore, its cycle life of over 2000 makes it a worthwhile investment that you can rely on for years to come. The ADS1200 Portable Power Station is built to last, with a V0 ABS+Aluminium housing that provides excellent protection against external damage. Additionally, it’s equipped with an IP63 cover for AC which gives added protection from dust and water splashes while the XT60 connector ensures secure power transfer even in tough conditions.
The bidirectional inverter technology incorporated in this power station enables you to power up your devices from either the AC or DC outlets. This flexibility is highly convenient and allows you to minimize power loss during power transfers.



1200w Portable Power Station Product Specification

2 input-（conversion efficiency：＞90%）		Rated Power：1200W, Peak 2400W
1. AC	600W	LifePO4 Battery 32140
2. PV Solar	XT60：12-32V 15A 400W MAX	Capacity：1008Wh /315000mAh
Service and ambient temperature:		Pure sine wave
Input Temp.：0~40℃（32~104℉） Output Temp.：-10~60℃（14~140℉） Storage Temp.：-20~45℃（-4~113℉)
10 output-（conversion efficiency：85-93%）		Cycle life >2000
1. USB	2x USB QC3.0 22.5 5V/4.5A, 9V/2A, 12V/1.5A（22.5W）	V0 ABS+Aluminium housing
2. AC	2x AC ，100-120V, 220-240V	Product Size：338*247*245mm Package Size：425*330*370mm N.W.：13.6 KG G.W.：14.6KG
3. DC	2x DC5521 12-13V/10A, Peak120w
4. Type-C	1x PD100W 5V/2.4A, 9V/3A,12V/3A,15V/3A,20V/5A ，Peak100W1x PD27W 5V3A9V/3A 12V/2.25A，Peak27W	IP63 cover for AC, XT60 connector
5. Car charger	1x 12-13V/10A，Peak120w
6. Wireless charge	5W. 7.5W. 10W. 15W	Over 100pcs, the color of handle, housing, window, plug cover could be customized.
Accessory：	1 x adapter+cable(1.2m)+1 x manual+1 x PV conver line（option）







ADS1200 Portable Power Station Functions and Advantages



1. LiFePO4 cylinder battery

• The LiFePO4 battery is known for its safety, long lifespan, and high energy density, allowing for a more efficient and reliable power source.
• The total of 21 PCs ensures a higher capacity and longer run time, providing enough power for extended use.

2. Protection plate: TIMaster controller: Icore， Inverter: Icore

• The protection plate ensures the safety and stability of the battery, preventing overcharging, over-discharging, and short circuits.
• The TIMaster controller and Icore inverter are high-quality components from Taiwan, known for their reliability and efficiency, ensuring optimal performance.

3. Automatically start two fans when the output reaches 200W.

• The two fans help dissipate heat generated during use, preventing overheating and prolonging the lifespan of the battery.
• The automatic activation ensures that the fans are only used when needed, saving energy and reducing noise.

4. AC input be off when the AC switch is on.

• This feature prevents accidents caused by accidental activation of the AC input, ensuring the safety of the user and the equipment.
• It also helps save energy and prolongs the lifespan of the battery by preventing unnecessary use.

5. Bidirectional inverter, charging faster, 600W/850/1000 input, 2 hours charge full.

• The bidirectional inverter allows for more efficient use of the battery, allowing it to be charged faster and used for longer periods of time.
• The input range of 600W/850/1000 provides flexibility for different types of charging sources, while the 2-hour recharge time ensures faster turnaround times.

6. 400W MPPT technology, 12~32V/15A, 4.5-5.5hours charge full.

• MPPT technology ensures maximum power is extracted from the charging source, allowing for faster and more efficient charging.
• The 12~32V/15A input range provides flexibility for different types of charging sources, while the 4.5-5.5 hour recharge time provides a reasonable and efficient timeframe.

7. Multifunctional screen

• shows input/output, remaining power, service time, real-time voltage, and real-time power.



About our company

Fuan Acepow Equipment Co., Ltd was founded in 1978, covers 50000㎡, located in Fuan City, Fujian Province, China. We have a special line in manufacturing diesel generator sets, and diesel alternators, and have the certificates of ISO9001 and ISO4001 CE, SASO, and SONCAP. We have honors of the national standard quality manufacturer, the first executive director company of Fu 'an Power Generation Equipment Industry Association, and the National Export Motor Quality and Safety Demonstration company. Our main markets are Europe, America, South Asia, the Middle East, Africa, and so on. Adhering to the philosophy of “Respect comes from credibility, Details determine the quality”, we developed an energy storage department with the brand Aceday， and cooperated with the experienced team of more than 300 persons, and of professional battery, cell, and laboratory R&D, we developed AH, AF, AB, AC, AL, ADS series. Believe that Acepow will become your best energy storage battery supplier!



Our service and advantage

• We have many experience in OEM work.
• We can customize special hardware as customer demand.
• Technical service for assembling.
• Variety types for selection, and prompt delivery.
• Well-equipped with an extensive sales network.
• Advanced Production equipment and production technique.
• Competitive Price (Factory direct price) with our good service.
• Different designs are available according to customer requests.
• Excellent quality testing equipment, 100% inspection on critical.



Packing and Shipping:

The batteries should be securely packaged in the original box and sealed with bubble wrap for added protection.

The box should be labeled with the product name, serial number, and expiration date.

The batteries should be shipped using a trusted carrier, such as FedEx or UPS.

The batteries should be shipped with a tracking number so that they can be tracked and monitored.

The batteries should be shipped with appropriate insurance coverage to protect against any damages during transit



FAQ



Q: Can we have our brand logo?
A: Yes, please send us the logo of your design, we have a professional team which is having rich experience in OEM&ODM, but there is a minimum order quantity required.



Q: Can you supply solar panels?
A: Yes, we have solar panels, we can recommend suitable solar panels.



Q: What's your company's warranty?
A: All of our products passed the professional QC test, and we offer a 1-year warranty.
