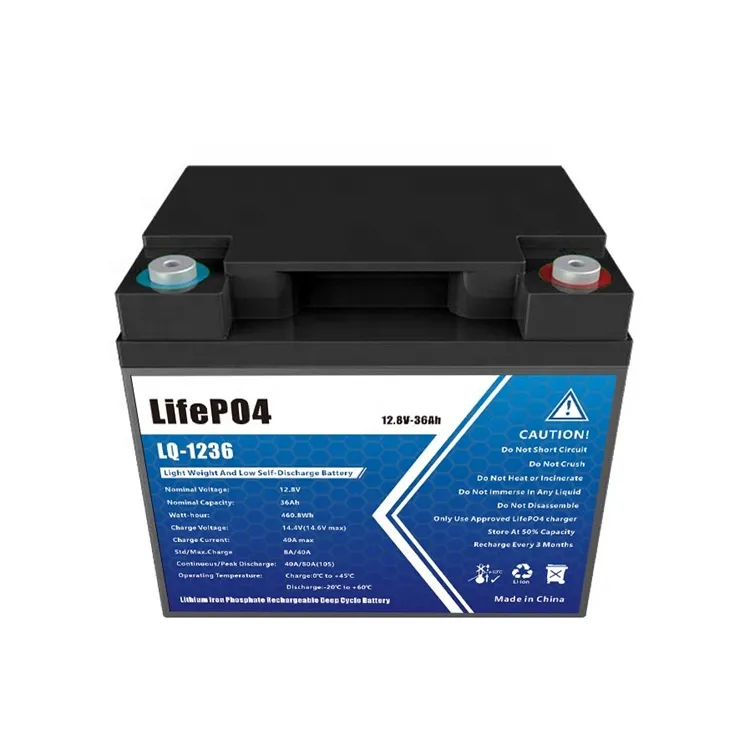

12v 36ah Lithium Iron Phosphate Battery
Lithium Iron Phosphate (LiFePO4) Battery 12V36Ah Capacity(Ah):36,Mix. capacity(Ah)：≥35 Nominal Energy(Wh)：460.8 Cycles(25℃,0.5C,80%DOD)：>6000 Product size(L*W*H,mm)：198*166*170 System weight(kg) ： Approx.4.2
Features
12v 36ah Lithium Iron Phosphate Battery Product Introduction
The 12V 36Ah lithium iron phosphate battery is an innovative and environmentally friendly power source that boasts a longer lifespan, faster charging time, and lighter weight. Not only that, but it is incredibly durable and able to withstand high temperatures without the risk of explosions or fires. With high energy density and low self-discharge rate, this battery provides a reliable and efficient power source that lasts ten times longer than traditional lead-acid batteries. the lithium iron phosphate battery is incredibly eco-friendly as it does not contain any toxic chemicals or heavy metals that could harm the environment. And since it is fully recyclable, it helps reduce waste and protect natural resources. Switching to lithium iron phosphate batteries not only benefits the environment but also saves costs in the long run due to their longer lifespan and higher efficiency.
12v 36ah Lithium Iron Phosphate Battery Specifications:
|
Operating Voltage(V) |
10.8~14.6 |
|
Nominal voltage(V) 51.2 |
12.8 |
|
Capacity(Ah) |
36 |
|
Mix. capacity(Ah) |
≥35 |
|
Nominal Energy(Wh) |
460.8 |
|
Maximum power output(W) |
460.8 |
|
Maximum charge voltage(V) |
14.6±0.2 |
|
Float charge voltage(V) |
13.5~13.8 |
|
Cut-off voltage(V) |
9.6~10.8 |
|
Standard charge current(A) |
7 |
|
Recommended charge current(A) |
≤18 |
|
Allowed Max. charge current(A)： |
36 |
|
Standard discharge current(A) ： |
7 |
|
Recommended discharge current(A)： |
<=36 |
|
Peak discharge current@10S(A)： |
80 |
|
Allowed Max. discharge current(A)： |
40 |
|
Internal Resistance(mΩ) ： |
<=25 |
|
Charging temperature(℃) ： |
0~55 |
|
Discharge temperature(℃)： |
-20~60 |
|
Combination structure of battery ： |
4S |
|
Cycles(25℃,0.5C,80%DOD)： |
>6000 |
|
Protection class ： |
IP65 |
|
System weight(kg) ： |
Approx.4.2 |
|
Product size(L*W*H,mm)： |
198*166*170 |
|
Packing size(L*W*H,mm) ： |
285*195*280 |
12v 36ah Lithium Iron Phosphate Battery Features
1. High safety performance
The P-O bond in the lithium iron phosphate crystal is stable and difficult to decompose. Even at high temperatures or overcharge, the structure will not collapse and generate heat or form strong oxidizing substances like lithium cobalt oxide. The decomposition temperature of lithium iron phosphate is about 600°C, so Has good security.
2. Long life
The cycle life of lithium iron phosphate power batteries reaches more than 6,000 times, and the cycle life of lead-acid batteries is about 300 times, with a maximum of about 500 times. With standard charging (0.2C, 5 hours), it can be used up to 6,000 times. When used with lithium iron phosphate batteries, the theoretical life will reach 7 to 8 years.
3. Good high-temperature performance
The electric heating peak of lithium iron phosphate can reach 350℃-500℃, while the peak value of lithium manganate and lithium cobalt oxide is only about 200℃. It has a wide operating temperature range (-20C--+75C) and has high-temperature resistance.
4. Large capacity
It has a larger capacity than ordinary batteries. As can be seen from the battery's capacity density, the energy density of lead-acid batteries is about 40WH/kg. The mainstream lithium iron phosphate batteries on the market have an energy density of more than 90WH/kg.
5. No memory effect
Rechargeable batteries often work under the condition that they are fully charged and the capacity will quickly fall below the rated capacity value. No matter what state the battery is in, it can be charged and used at any time, and there is no need to discharge it first and then recharge it.
12v 36ah lifepo4 FAQ
Q: What is a 12v 36ah Lithium Battery?
A: A 12v 36ah Lithium Battery is a rechargeable battery that uses Lithium-ion technology to provide power. It has a voltage of 12 volts and a capacity of 36 ampere-hours.
Q: What are some common applications for a 12v 36ah Lithium Battery?
A: A 12v 36ah Lithium Battery can be used for a variety of applications, including solar power systems, electric vehicles, backup power systems, RVs, boats, and more.
Q: How long does a 12v 36ah Lithium Battery last?
A: The lifespan of a 12v 36ah Lithium Battery depends on several factors, including usage patterns, charging habits, and environmental conditions. Generally, these batteries can last anywhere from 5 to 10 years with proper care and maintenance.
