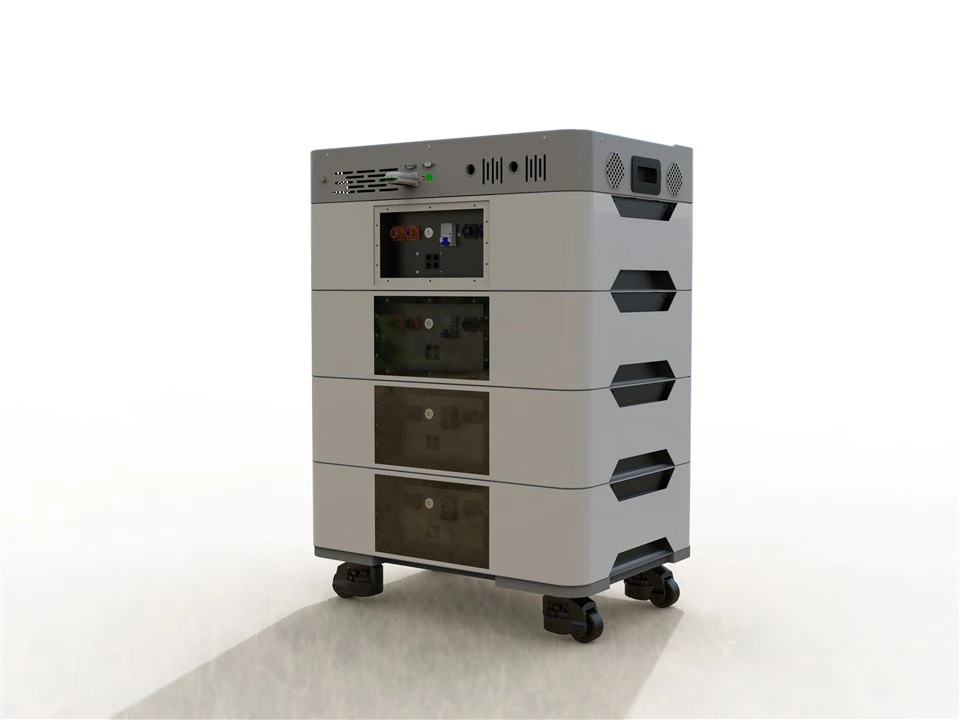

Home Solar Power Storage 5kwh Product Description



Home energy storage, also known as household storage, is similar to a micro energy storage power station, and refers to the energy storage equipment used in the home environment. and its operation is not affected by the city's power supply pressure. During low power consumption periods, the battery pack in the home energy storage system can recharge itself to provide backup for peak power or power outages. It can store excess electric energy and release it when needed to achieve the purpose of peak shaving, load balancing, and improving power quality. Home energy storage systems usually consist of battery packs, inverters, charging equipment, etc., In addition to being used as emergency power sources, home energy storage systems can balance electricity loads, saving household electricity expenses. Home energy storage systems are mainly combined with photovoltaics, forming hybrid, coupled, off-grid, and other home solar + energy storage systems.



Home Solar Power Storage 5kwh Product Specification



Rated Voltage	51.2
Standard charge	CC/CV: 58.4V/0.2C,charging till to the current decline to 0.02C, at 25℃
Standard discharge	Discharge continuously with 0.2C to Cut-off Voltage.
Rated Capacity	100AH
Minimum Capacity	99AH
Product Size (mm）	L≈800 W≈437 H≈1200
Weight	130kg
Max charge current	≤50A
Max Continuous Discharge Current	≤100A
Cut-off Voltage	40V±0.05v
Charging Voltage	58.4v±0.05v
Ac Interna; Impedance	≤40mΩ

Product Features



Stacking design.

high cycle times.

lithium iron phosphate cells, intelligent system.

CAN2.0/RS485 communication.

have wheels move around conveniently



Benefits for families:



Reduce energy expenses: Households generate and store electricity independently, which can significantly reduce grid electricity consumption.

Avoid peak electricity prices: Energy storage batteries can store electricity during low-peak periods and discharge during peak periods.

Achieve independence in electricity consumption: Households store solar power generated during the day and use it at night. At the same time, it can also be used as a backup power source in case of a sudden power outage.



Grid support: If home energy storage is connected to the grid and inputs the residual power generated by the home into the grid, it can greatly alleviate the pressure on the grid:

1) Provide power supply response during peak power consumption periods, which can reduce the use of low-efficiency diesel engine power generation;

2) Use it in conjunction with local power frequency that matches the power grid, such as 50Hz or 60Hz.

Reduce the use of fossil energy: Households can greatly improve the efficiency of electricity consumption by storing their own generated electricity.



Application scenarios of home energy storage systems



1. Residential communities: Introducing home energy storage systems into residential communities can reduce the burden on the power grid, improve power quality, and provide stable power output for community residents.

2. High-end residences such as villas and apartments: High-end residential areas have a large demand for electricity. Home energy storage systems can effectively solve the power supply problem during peak power consumption periods while providing stable power output.

3. Remote areas such as rural areas and mountainous areas: In remote areas such as rural areas and mountainous areas, unstable power supply often exists due to complex terrain and imperfect power facilities. Home energy storage systems can be used as emergency power sources to ensure household electricity needs.

4. Commercial places: In commercial places such as shopping malls, restaurants, etc., the introduction of home energy storage systems can provide stable power output, improve power quality, and reduce power outages.



Customized Services

Our system is supported from 3kwh to 100kwh, with a simple installation that makes sure the users have a wonderful experience.



FAQ



Q： Can Home Solar Power Storage 5kwh power my entire house?
A: The Home Power Storage is designed to provide power to your home during periods of low sunlight or at night. It may not be enough to power your entire home, but it can help offset your energy usage and lower your overall energy bills.



Q: What is the maintenance required for Home Power Storage?
A: Home Power Storage requires minimal maintenance, but regular inspections and cleaning of the solar panels and battery pack are recommended to ensure optimal performance.
